PARALLEL REEL PAYOUT
PART NUMBER: M99-01438
Chant Engineering’s Parallel Reel Payout simplifies cable pulling by using free-spinning, multi-compartment reels that ensure even payout. It has four-way fork pockets for easy transport and optimal positioning. Additionally, it comes with casters for manual maneuvering.
Features & Benefits:
• Heavy-duty steel construction, 7,000 lb. capacity
• 4 connected compartments for synchronous payout
• Arbor holes for a variety of wire gauges: 0.25″, 0.38″, 0.63″, 0.88″, 1.13″, 1.36″
• Removable wheels for ease of movement
• Dedicated forklift points on all sides
• UNIQUE FEATURE: Flip up casters, can be forklifted or rolled
Dimensions:
• Wire spool minimum diameter: 15.5″
• Wire Spool maximum diameter: 44″
• Without wheels: 41″ x 41″ x 52 1/8″ (LxWxH)
• With Wheels: 51″ x 43 ½” x 56 ½” (LxWxH)
• Frame (Without wheels or barrel): 41″ x 41″ x 30 ¼” (LxWxH)

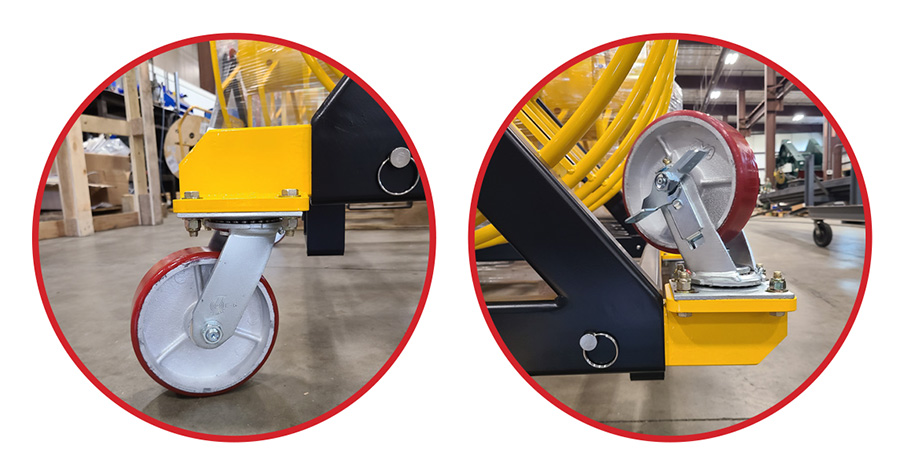

Equipped with locking caster wheels that can be flipped up and securely stored on the frame when not in use.
These parallel reel payout or multiple compartment reels are now available and in stock!
Please contact our sales team at 215-230-4260 for pricing.
