Government & Military

Test Stands and other products for government and Military applications

Chant Engineering has had a long history of designing and manufacturing custom test stands as well as other custom products for aerospace, aviation, military and industrial industries.

Contact us for a quote

held to higher standards


Over 53 Years of Testing Machinery You Can Trust

Chant Engineering is known as a leader in manufacturing heavy-duty testing equipment for government and military applications.

Chant Engineering’s typical Test Stand capabilities include:


Pressure
Flow
RPM
Temperature
Dynamic
Static
Fatigue
Position
Force
Torque
ISO 9001/ AS9100D & PJLA 17025 Seal

Chant is accredited and certified to the following industry standards:

  • ISO 9001:2015
  • AS9100D
  • ISO/IEC 17025:2017 Accredited

TEST STANDS FOR MILITARY APPLICATIONS

840101 Hydraulic Servo Valve Torque Motor Test Stand

Hydraulic Servo Valve torque motor Test STand

Model 840101

Chant Model 840101 is a Hydraulic Servo Valve Torque Motor Test Stand designed to test the servo valve torque motor assemblies on aircraft servo valves.

840101 Hydraulic Servo Valve Torque Motor Test Stand

GERMICIDAL UV LIGHT MOBILE DISINFECTION SYSTEM

Chant Engineering’s Germicidal UV Light Mobile Disinfection System will disinfect and deactivate SARS-CoV-2 on large-sized items like pallets, large tools, and equipment. This unit will disinfect in less than one minute and can be modified with conveyor systems for use in shipping, aircraft, and manufacturing facilities.

For more information, view the UV Disinfection System datasheet here.

F-15K Servo Valve Test Stand

Model 9342-01

Chant Model 9342-01 is a F-15K Servo Valve Test Stand designed to test 3 and 4-way electro-hydraulic and proportional valves. This unit allows the operator to test in fully automatic, semi-automatic and manual modes.

    F-15 Speed Calibrati0n Test Stand

     Model 8543-01

    The Chant Model 8543-01 Speed Calibration Test Stand is one of our latest state of the art test stands USAF (NSN 4920-01-460-0332).  The test stand is capable of dynamically verifying the F-15 Secondary Power Systems (SPS) switches and governors P/N’s 367119-2, 367036-3 and 367036-5. The test stand will operate switch assemblies up to 12,000 RPM and indicate switch actuation within specified ranges.  If the switch actuates outside the specified range, a fault is indicated.

    Fatigue, Cycle & Static Shaft Test STand

    Model 8386-01

    Chant Model 8368-01 is a Fatigue, Cycle & Static Shaft Test Stand designed to perform dynamic and static testing of USAF B1-B power take-off (PTO) shafts. The shafts are being tested for functional integrity. One test dynamically fatigues the shaft at 12,000 RPM and one test is for the static torque.

    Liquid coolant pump test stand

     Model 10502-01

    Chant Model 10502-01 Liquid Coolant Pump Test Stand is designed to test aircraft liquid cooling pumps, heat exchangers and valves P/N 5007346A, UA534121-16, UA534116-6, 3291132-2-1 and more. This test stand has a High Pressure Low Flow Supply, Low Pressure High Flow Supply, Return Circuit, P/RP Circuit, Loop Circuit, Nitrogen Circuit and Vacuum/Nitrogen/Sump Circuit. This is a fully automated test stand with data acquisition software and touchscreen HMI controls for all tests.

    Nozzle Actuator Test Stand

    Model 10552-01

    Chant’s Model 10552-01 Nozzle Actuator Test Stand is designed to test Synchronous Exhaust Nozzle Actuator, P/N 2195000-16, Feedback Exhaust Nozzle Actuator, P/N 2195000-19, Exhaust Nozzle Actuator, P/N 2195000-18, Synchronous Exhaust Nozzle Actuator, P/N 2198000-1 & 2198000-3 and the Nozzle Position Feedback Transducer, P/N 1369M58P02. This test stand has Actuator Hydraulic Control, a Load Cylinder Hydraulic Control, Pressure Transducer Manifold, Nitrogen Charged Accumulators and a Sump Circuit.

    This unit provides two operator touch screens to set up test parameters and test multiple devices in each test sink.



    Fuel Flow Test Stand

    Model 8420

    Chant’s Model 8420 Fuel Flow Test Stand is designed to dynamically test and certify aircraft in-flight refueling equipment.

    The test stand consists of a 2,000 gallon jet fuel tank along with the necessary valves, pumps, manifolds and operator controls.

    Fuel Oil Test Stand

    Models 10123-01 & 10123-02

    Chant’s Model 10123-01 and 10123-02 Fuel Oil Test Stands are designed to manually test aircraft lube pumps P/N 5008T68P01, P07, P11, P13, radiators, oil coolers, and related components with MIL-PRF-23699 fluid in accordance with the required specifications. Units require test area ventilation for operator safety.

      Fuel pump test stand

       Model 10453-01

      Chant’s Model 10453-01 Fuel Pump Test Stand is designed to manually test aircraft fuel components with MIL-PRF-7034E, Type II fluid.  This test stand meets the requirements of NEC, Class I, Division I, Group D.

      helicopter cargo hook test stand

      Model 949001

      Chant’s Model 949001 Helicopter Cargo Hook Test Stand is a hydraulically controlled, semi-automated machine designed to perform tension testing up to 75,000 lbs. and electrical operation of helicopter cargo hooks in a production based military depot environment.



      Helicopter Cargo hook Test Stand

      Model 31312

      Chant’s Model 31312 Cargo Hook Test Stand is designed to load and electrically test UH-60 Blackhawk Cargo Hooks NSN 4030-01-109-3024, 4030-01-271-6239, 4030-01-176-9353, 4030-01-238-4394 and 4030-01-456-4792. A hydraulic actuator produces all required loads between 500 lbs. and 20,000 lbs.   A structure that captures the trunnion mounts of the Cargo Hook is mounted to the end of the actuator rod.   The deadweight system produces the low loads of 25 lbs. and 100 lbs. The test stand is fully automatic controlled via operator touchscreen with Chant LabView based control and data acquisition software.

      Universal Hydraulic Test STand

      Model 9658-01

      Chant’s Model 965801 Universal Hydraulic Test Stand is comprised of a test stand console, Hydraulic

      The Chant Model 9658-01 Universal Hydraulic Test Stand is used for testing various relief valves, cylinders, hydraulic pumps, hydraulic motors, selector valve assemblies and hoses. The Test Stand is comprised of a test stand console, Hydraulic Power Unit (HPU), chiller unit, dynamometer lubrication unit, motor control center and a remote PLC. This test stand has three separate hydraulic circuits of 0-60 GPM, 0-20 GPM and 0-60 GPM. Max operating pressure is 5,000 psi with 10,000 psi static air.

      Power Unit (HPU), chiller unit, dynamometer lubrication unit, motor control center and a remote PLC.

      Pneumatic Component test stand

      Model 10356

      Chant’s Model 10356 Pneumatic Component Test Stand is designed to test aircraft hydraulic and pneumatic components such as engine-drive hydraulic pumps, electro-hydraulic flight control assemblies, double acting hydraulic cylinders, pneumatic and hydraulic relief valves, hydro-pneumatic accumulators and other components.

      Universal Automatic Hydraulic Test Stand

      Model 9736909

      Chant’s Model 9736909 Universal Automatic Hydraulic Test Stand is used for testing aircraft control components.

      Display monitors show pressures, flows, speeds, torques and temperature in order to accurately measure parameters of the units under test (UUT).



      UNIVERSAL HYDRAULIC Test Stand

      Model 97371008

      Chant’s Model 97371008 Universal Hydraulic Test Stand is designed to test aircraft control components.

      Located along the panel of the console are all the necessary controls to start the multiple hydraulic pumps and control pressures and flows to all the ports.

      The unit features a wide test bench, two monitors and CPU, splashguard, high variable speed drive and a test sink with pressure and return test ports, DC power connection, temperature control and sump.

      F-16 Servo Valve TEST STAND

      Model 8931-01

      Chant’s Model 8931-01 F-16 Servo Valve Test Stand when connected to an external hydraulic power sources (5,000 psi, 2 gpm) is designed to test and record characteristics of 3 and 4-way electro-hydraulic servo valves.

      This test stand can perform the following tests: proof pressure, external leakage, no-load flow pot, linearity, symmetry, hysteresis, overlap and internal leakage.

        Servo-Linear Component Test Stand

        Model 30387

        Chant’s Model 30387 Servo-Linear Component Test Stand includes a Rotating Component Test Station, Pump Control and Distribution Manifold with custom Hydraulic Power Unit (HPU).

        This system tests a multitude of aircraft hydraulic components, such as: hydraulic servo actuators, mainifolds, accumulators, hydraulic pumps, hydraulic motors and integrated hydraulic power units.



        Hoist Test Stand

        Model 9857-01

        Chant’s Model 9857-01 Hoist Test Stand is designed to perform hoist test, accumulate test data and provide documentation for tracking history of the hoist being tested. The test stand is capable of operating a hoist while applying the required loads to the host and varying the input voltage level as specified by the DMWR. the electric DC motor of the MLRS/HIMARS system is used to test both models of the hoist.



        M88A2 Hercules Advance Unit Test Stand

        Model 9730-02

        Chant’s Model 9730-02 Advance Unit Test Stand is designed to test the M88A2 Hercules Armored Recovery Vehicle. It is used to test new and rebuilt advance units for the Hercules and 1790 engines.

        The advance units are part of the fuel injector pump on the engines. This unit is designed to perform continuous production line testing of advance units.



        UNIVERSAL Operation & Maintenance (O&M) HYDRAULIC Test Stand

        Model 10947-01

        Chant’s Model 10947-01 Universal Operation (O&M) and Maintenance Hydraulic Test Stand is used to bench test, repair and troubleshoot all family M109 Paladin hydraulic components as well as other hydraulic components. It will test any component that can use the same hydraulic fluid and has requirements that are within the capabilities of the test stand.

        Static Hydraulic Test STand

        Model 10024610

        Chant’s Model 10024610 Static Hydraulic Test Stand is used for testing T-38/F-5 aircraft components.



        UNIVERSAL HYDRAULIC Test Stand

        Model 10228

        Chant’s Model 10228 Universal Hydraulic Test Stand is used to bench test, repair and troubleshoot all LAV family of  vehicles, such as: MK-48, MK-17, AAV and the M-88 Hercules hydraulic components.

        Tri-Axial Servo Hydraulic Testing Machine

        Model 828901

        The Chant Model 828901 is a large servo-hydraulic testing machine. This is one of the worlds largest machines used to structurally test 8 ft. x 24 ft. sections of ships hulls. The physical size of the machine is approximately 40 ft. long x 25 ft. wide x 15 ft. tall.

        In use, this machine uses a Chant Engineering designed real-time computer controlled servo-hydraulic system to simultaneously push and pull steel hull sections with up to 5 millions lbs. of force longitudinally, 1.2 million lbs. of force laterally and 700,000 lbs. from below. All individual actuator forces and displacements are controlled by and displayed on the computer. The specimens are strain gauged by the user and the results displayed on a separate computer. All controls are in a soundproof operator control room.

        11806 Hydraulic Test Stand

        Integrated Lower Control Actuator Test Stand

        Model 11806-01

        The Chant Engineering Model 11806-1 Integrated Lower Control Actuator (ILCA) Test Stand is used to bench test, repair and troubleshoot CH47 control actuators, specifically the ILCA (pitch, roll, yaw) P/N 145H7300-20,25,31, the ILCA (thrust) P/N 145H7300-12,26 as well as the extensible link P/N 1457350.  This test stand is capable of performing all tests specified by the DMWR 1-1650-397.   This test stand is fully automatic operated from a single touchscreen computer.

        No Image Available

        Cargo Hook Actuator Cylinder Test Stand

        Model 11806-02

        The Chant Engineering Model 11806-2 Cargo Hook Actuator Cylinder Test Stand is used to test the Cargo Hook Actuator Cylinder with MIL-PRF-83282 hydraulic fluid and Nitrogen gas in accordance with the required specifications.

        The Test Stand consists of three major components: test table, control console and hydraulic & nitrogen skid with electrical panel. The test table is the part of the test stand that houses the UUT (units under test). The test enclosure area is where the operator places the UUT and attaches hoses to the ports on the UUT and makes the electrical connection of the solenoid. The test enclosure is enclosed by a steel guard with polycarbonate windows for operator safety.

        11806-2 cargo hook test stand

        Blade Lag Shock Absorber Actuator Test Stand

        Model 11806-03

        The Chant Engineering Model 11806-3 Blade Lag Shock Absorber Test

        Stand is used to bench test, repair and troubleshoot CH47 blade dampers, specifically Blade Lag P/N 114H6800-11 and 114H6800-2.  This test stand is capable of performing all tests specified by DMWR 55-1650-166.   This test stand is full automatic run from a single operator’s control touch screen computer.

        11037 Hydraulic Test Stand

        Hydraulic Test stands

        Model 11037

        The Chant model 11037 Test Stand is used to manually test F-18 Aircraft pumps and motors as well as other aircraft hydraulic components. The unit consists of five major components: the test console, the electrical enclosure, the control console, the drive enclosure and the hydraulic skid.

        Pressure & Flow:

        Low pressure (supercharge): 300 Psig @ 90 GPM.

        High pressure : 5000 Psig @ 35 GPM.

        Proof pressure: 8000 Psig @ 10.5 GPM.

        Operating Temperature:

        Low pressure (supercharge): 275 deg.F.

        High pressure: 200 deg.F.

        Proof pressure: 120 deg.F.

        Hydraulic Fluid: MIL-PRF-83282



        11041 Hydraulic Test Stand Product Box

        Pylon Control Actuator Test Stand

        Model 11041-01

        The Chant Engineering Model 11041-01 Pylon Control Actuator Test Stand is used for testing the Pylon Control Actuator (PCA) on the V-22 aircraft.  This test stand consists of (3) major physical components: the Test Console, the HPU Console and the Test Frame.

        The Test Console includes a 60” wide test bench with a 19” touchscreen monitor, CPU and Main Electrical Enclosure.  Located on the touchscreen and along the front panel of the console are all the necessary controls to start the hydraulic pump and control outputs such as voltage, current, frequency, and hydraulic pressure. Displayed on the monitor are all pressures, flows, speeds, voltages, currents, frequencies and temperatures in order to accurately measure parameters of the PCA.

        The HPU (Hydraulic Power Unit) Console has a 3-stage hydraulic pump driven by a 150hp. One pump is used to deliver fluid to the load actuators on the test frame. One pump is used to deliver fluid to the PCA and the third pump is used for circulation purposes in order to control temperature. The reservoir, the pumps, valves, filters, heater and heat exchanger are all contained in one common sheet metal enclosure that is designed to operate in weather conditions.



        11594 4 Diesel Test Stands

        Diesel Test stands

        Model 11594

        The Chant Model 11594 Diesel Fuel Pump Injector Test Stand is used for testing diesel pumps and injectors. It consists of (4) major physical components: the Test Stand, the Cambox, the Single Pump Measurement Cart and the Multi-Pump Measurement Cart.

        The Test Stand is designed to test diesel pumps and injectors by providing the specified pump stroke rate, lift distance, fuel pressure and number of strokes to the pump and then measuring the volume of fuel that is produced by the pump through the injector in order to see if it meets the expected range.  The unit is controlled via industrial touchscreen operator interface and has complete test data acquisition.

        The pump stroke rate is a result of the rotational speed of the main drive on the test stand. The test stand drive consists of a 60 hp motor that is connected to a Variable Frequency Drive. The drive is connected to a cambox for driving a single pump at speeds up to 800 rpm. The drive can also be used without a cambox to drive multiple cylinder pumps at one time without a cambox (at speeds up to 3000 rpm). The cambox will take rotational movement of the drive and translate it to a linear vertical stroke that actuates the pump being tested.



        30499 Fuel Component Test Stand

        FUEL COMPONENT TEST STAND

        Model 30499

        The Chant Test Stand model 30499 is designed to test Fuel Accessories of TF34 & F404 engines. It can also be used to test any other fuel components which can fit within the hydraulic and electrical capacity of the test stand. It is designed to use fluid supplied by external Hydraulic Power Unit (HPU) which in this case is a centralized fluid supply and return system in the building. Because of the fluid properties which are hazardous in nature, this test stand is designed and rated for Hazardous area classified per ClassI, Division-II.

        30511 Military Test Stand

        Hydraulic Component Test stand

        Model 30511

        Chant Model 30511 Hydraulic Component Test Stand (HCTS) is two operator stations powered by one central hydraulic power unit with heating and cooling equipment. Test stations are independently controlled for testing operations. This test stand is used for testing hydraulic valves, high-flow and low-flow relief valves, hydraulic actuators, motors, accumulators, flow control valves, and miscellaneous other hydraulic or hydro-pneumatic components used by the Navy.

        30821 Damper Cylinder Test Stand

        DAMPER CYLINDER TEST STAND

        Model 30821

        The Chant Model 30821-01 Damper Cylinder Test Stand is used to test F-18 Lateral Hook Dampers. This unit includes the Test Cart where the UUT’s are tested as well as a 50 Horsepower Hydraulic Power Unit (HPU) to supply the Test Cart and ultimately the UUT with hydraulics. This Test stand is touchscreen controlled using the latest Chant LabView based software with full test data acquisition.

        30787 Nose Wheel Steering Assembly Test Stand Upgrade Kit

        NOSE WHEEL STEERING ASSEMBLY TEST STAND UPGRADE KIT

        Model 30787

        The Chant Model 30787-01 Test Stand is used to test E-2A Nose Wheel Steering Unit. This Test Stand includes the Test Cart where the UUT’s are tested as well as a 50 Horsepower Hydraulic Power Unit (HPU) to supply the Test Cart and ultimately the UUT with hydraulics. This Test stand is touchscreen controlled using the latest Chant LabView based software with full test data acquisition.

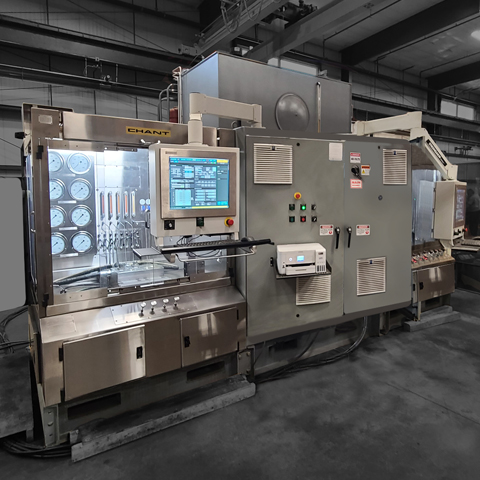

        30135 Universal Test Stand

        Hydraulic Test stands

        Model 30135

        The Chant model 30135 Test Stand is used to test Navy submarine hydraulic components. It consists of a single Hydraulic Power Unit (HPU) and two test stations.  This test stand is automatically controlled via Chant LabView based test stand software. The HPU has a single electric 300 HP motor that drives two hydraulic pumps.  Each hydraulic pump is capable of operating at up to 60 GPM at 5,000 psi and 48 GPM at 6500 psi.



        30770 winch

        Spooler

        Model 30770

        This Spooler is an electrically powered cable reel, designed to provide a ship-mounted method of retrieval.

        The Spooler is designed with a drum reel that will handle up to 1” diameter wire rope. The drum is steel construction and painted with epoxy primer and topcoat to withstand marine conditions. The drum is direct-driven by a motor and right-angle gearbox to deliver the required speed (10 meter/minute at drum core) and torque (7000 lb line pull at drum core).



        MILITARY PRODUCTS

        M1A1 Band

        M1A1 Engine Retaining Band

        NSN 5340-01-383-2052
        P/N D3-500-770-09

        The Chant Engineering Engine Retaining Band is used on the engine of the US Military’s M1A1 main battle tank.

        NSN 4920-01-601-2855 PN 10536-01

        Oil Cooling Cart

        NSN 4920-01-601-2855
        P/N 10536-01

        The Chant Model 10536-01 Oil Cooling Cart is designed to provide cooling for various Line Replaceable Units (LRUs) while they are undergoing repair and testing. When performing certain maintenance and repair operations on these LRUs, it is necessary to provide cooling to remove heat that is generated by them.
        NSN 4920-01-601-2855
        P/N 10536-01

        31614 AGT1500-EMFS Test Stand

        AGT 1500 EMFS TEST STAND

        Model 31614

        Chant’s fully automatic AGT1500 EMFS Test Stand is designed to test the Electromechanical fuel assembly on the US Army’s M1 Abrams main battle tank. This test stand is like other fuel component test stands we have made and is designed to test the specified fuel control units.

        Chant 31851 AGT1500 Oil Pump Test Stand

        AGT1500 OIL PUMP TEST STAND

        Model 31851

        Chant’s AGT1500 Oil Pump Test Stand is designed to test the oil pump assembly on the US Army’s M1 Abrams main battle tank. The test stand supports both automatic and manual modes of operation. In automatic mode, the stand will provide the appropriate sequence of supplied rpm, pressure, and temperature. At appropriate points during testing, the stand will pause and direct the operator to adjust settings or move hydraulic components. In manual mode, the operator controls the rpm, pressure, and temperature supplied.

        V-22 Cargo Rails

        P/N 31926 ECRS V-22

        A custom V-22 Extended Cargo Rail System (ECRS) is used on aircraft where it is not possible to load the airplane via conventional methods.

        Deployable Hydraulic Lift (dehl)

        Model 963401 – DeHL

        The Deployable Hydraulic Lift (DeHL) is an unloading device designed to work with the Military Halvorsen 25K Loader.

        Diesel Engine Driven Portable Hydraulic Test Cart

        Model 10008

        Chant’s Model 10008 Diesel Engine Driven Portable Hydraulic Test Cart is designed  with a two-system hydraulic pumping unit to check the operation and performance of aircraft hydraulic systems.

        It is a portable and self-contained unit, which provides functional testing on the aircraft.

        Nitrogen service carts

        Model 30165 – NSN 3655-01-517-9308 – P/N 1317AS100-2

        Chant’s Nitrogen Service Units are manufactured using a structural steel frame suitable to hold the required components. Carts have provisions for the accumulation, containment, and dispensing of nitrogen (‘gas’) at pressures up to 3,500 psi.  Nitrogen is dispensed into aircraft and aircraft support equipment, or used to pressurize those items.

        Each unit has six nitrogen bottles having a capacity of 340 cu ft of nitrogen.



        Oil Transfer System (OTS)/fill & Bleed Unit

        Model MS-S-00015

        Chant’s Model MS-S-00015 Oil Transfer System (OTS) is also referenced as a Fill & Bleed Unit used for the M777A2 and M198 155MM Towed Howitzer.

        It is designed to facilitate maintenance and repairs in the field which includes the ability to:

        • Discharging Gun to Reservoir
        • Discharging Gun to Waste
        • Charging a Gun
        • Filling Reservoir from a Drum
        • Emptying the Reservoir to a Drum
        • Emptying the Reservoir to Waste

        Hydraulic Fluid Services Unit

        Model 9824 – NSN 4920-01-579-6399

        The Chant Model 9824 Hydraulic Fluid Servicing Unit is designed to pump filtered hydraulic fluid into aircraft or for any other suitable purpose.

        Bradley Fighting Vehicle Hydraulic Pump

        NSN 4320-01-432-6208 – P/N 12395352

        The Chant Model 12395352 Bradley Fighting Vehicle Hydraulic Pump is an emergency engine hatch hand pump used on the Bradley Fighting Vehicle.

        V-22 Snatch Block Pulley

        NSN 1680-01-566-5137 – P/N 901-320-546-101

        The Chant Engineering V-22 Snatch Block Pulley is a field proven design that is easy to use by the warfighter.

        V-22 Engine Rinse Wand

        V-22 Engine Rinse Wand

        Chant’s V-22 Engine Rinse Wand is used to fresh water rinse the V-22 engines during shipboard/sale air use.

        Hydraulic Pumping Unit

        13221E6735 NSN 4320-01-141-8237

        The Chant 13221E6735 Hydraulic Pumping Unit is a transfer pump used to transfer and filter hydraulic oil  from drums into the M109 Howitzer.

        Filter & Regulator Panel

        NSN 4240-01-029-7148 – P/N D7974

        Chant Engineering is the preferred  vendor for the  D7974 Filter and Regulator Panel.

        Helicopter test equipment

        NSN 4240-01-029-7148 – P/N D7974

        Chant Engineering is a preferred vendor for Helicopter Test Equipment.
